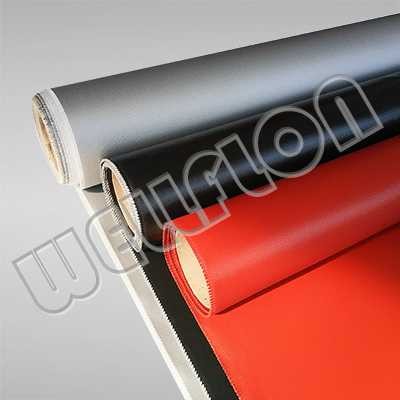

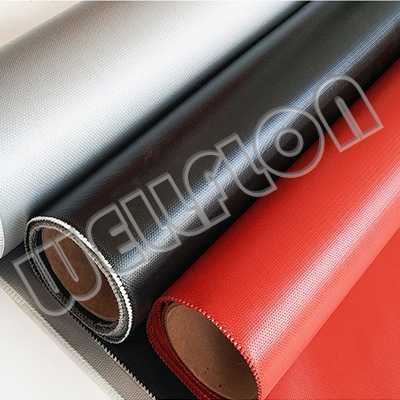

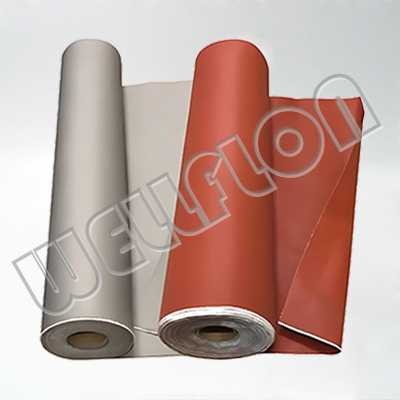

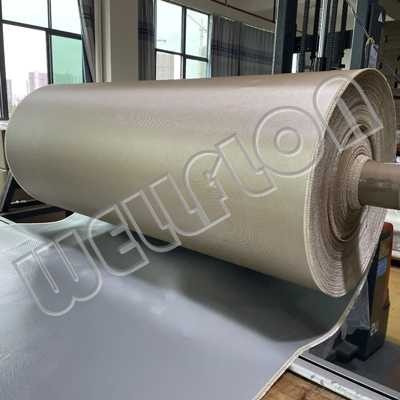

Silicone Coated Fiberglass Fabric

Brand: WELLFLON
Materials: Silicone, Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Red/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

Product Description:

Silicone Coated Fiberglass Fabric is also called silicone glass fiber cloth, or silicone cloth for short. CHANGWEI silicone cloth has many similar characteristics to other PTFE-coated fabrics: good high temperature resistance up to +230°C, excellent corrosion resistance and insulation properties. But silicone cloth is softer and has excellent surface non-stick properties. On the other hand, silicone cloth is not as smooth as other PTFE-coated fabrics. This fabric can be used on both sides and has three colors: red, white and gray.

Main Features of Silicone Coated Fiberglass Fabric:
● Used for low temperature -70℃ to high temperature 230℃. Good insulation performance;
● Resistance to ozone, oxygen, light and weather aging, excellent weather resistance in field use, and a life span of up to 10 years;
● High insulation performance, dielectric constant 3-3.2, breakdown voltage 20-50KV/MM;
● Good chemical corrosion resistance; oil resistance, waterproof [can be scrubbed];
● High strength; soft and tough, can be cut and processed.

Main Application Range of Silicone Coated Fiberglass Fabric:
● Shrink furnace;
● Manufacture of various foam plastics;
● Electrical insulation: Silicone cloth has a high electrical insulation level, can withstand high voltage loads, and can be made into insulating cloth, casing and other products;
● Industrial conveyor belts;
● Fire curtain;
● Isolation liner;
● Non-metallic compensator: Silicone cloth can be used as a flexible connection device for pipelines. It can solve the damage to pipelines caused by thermal expansion and contraction. Silicone cloth has high temperature resistance, corrosion resistance, anti-aging performance, good elasticity and flexibility, Can be widely used in petroleum, chemical, cement, energy and other fields;
● Anti-corrosion: It can be used as the inner and outer anti-corrosion layers of pipelines, and has excellent anti-corrosion performance and high strength. It is an ideal anti-corrosion material;
● Other fields: Silicone rubber-coated glass fiber membrane structure materials can be used in building sealing materials, food, packaging, printing, chemical, rubber industry sealing materials.

Main Specifications of Silicone Coated Fiberglass Fabric:

Item	Color	Thickness	Max Width	Weight	Breakdown Voltage	Temperature
CWF-S0280	Gray/Black/Red	0.23mm	1800mm	280±5g/m2	20~50 KV/mm	-70~260 ℃
CWF-S0510	Gray/Black/Red	0.43mm	1800mm	510±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0570	Gray/Black/Red	0.45mm	1800mm	570±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0760	Gray/Black/Red	0.60mm	1800mm	760±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0800	Gray/Black/Red	0.62mm	1800mm	800±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S0860	Gray/Black/Red	0.65mm	1800mm	860±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1080	Gray/Black/Red	0.85mm	1800mm	1080±5g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1400	Gray/Black/Red	1.00mm	1800mm	1400±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S1800	Gray/Black/Red	1.00mm	1800mm	1800±5 g/m 2	20~50 KV/mm	-70~260 ℃
CWF-S2450	Gray/Black/Red	1.50mm	1800mm	2450±5 g/m 2	20~50 KV/mm	-70~260 ℃
